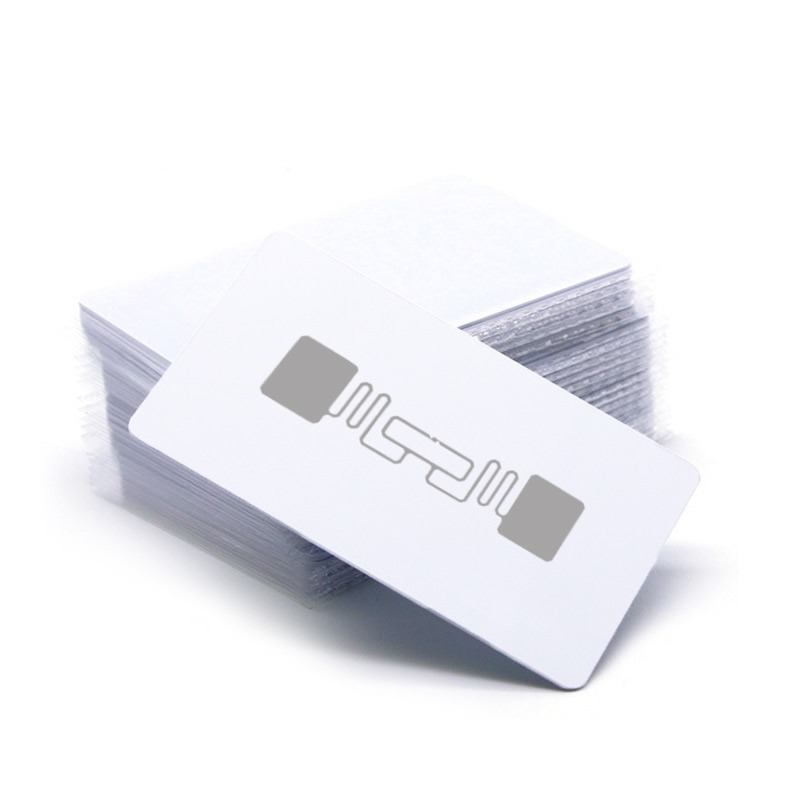

Custom RFID UHF Card Alien Higgs 9 PVC Card
›› Protocol: ISO/IEC 18000-6C, EPCglobal Gen2
›› Frequency: 860~960 MHz
›› 1024 bits of NVM/RAM Memory
• Up to 496 EPC bits (nominally 96 bits)
• Up to 688 User bits
• 48-bit Unique TID
• 32-bit Access and 32-bit Kill Passwords
›› Read sensitivity: Up to -20.0 dBm
›› Write sensitivity: Up to -18.0 dBm
›› Pre-Programmed with a unique, unalterable 48-bit serial number
›› User Memory can be Block Perma-Locked & read password protected in 256-bit Blocks
›› Low power operation for both reading and program
›› QuickWrite™ / BlastWrite™- High-speed chip & mass programming
›› Dynamic Authentication™ – anti-cloning/anti-counterfeit technology
›› Exceptional operating range, up to 13 m with appropriate antenna
| Chip | Higgs™ 9 |
|---|---|
| Operating Frequency | UHF (840-960 MHz) |
| Operating Distance | up to 13m |
| Working Temperature | -40°C to +85°C |
| ISO/IEC Support | GS1 Class 1 Gen 2 and ISO/IEC 18000-6C |
| Write Endurance | 200,000 |
| NVM/RAM Memory | 1024-Bits |
| Unique TID | 48 Bit Unique TID |
| EPC | Up to 496-EPC Bits (nominally 96 bits) |
| User Memory | 688 bit |
| Inlay Size | 70*17mm |
| Material | PVC |
| Printing | Blank, customized, offset printing, screen printing |
| Quantity | 100, 200, 500, 1,000, 2,000, 5,000, 10,000, 20,000, 50,000 |
| RFID Card Types | RFID Blank Card or Custom Printing RFID Card |
| Material | PVC, PET, Wooden, Metal |
| Card Size | Standard size (85.5*54mm), Custom sizes available |
| Printing | Offset printing / Silk printing / Digital Printing / UV printing |
| Blank Card | We supply blank cards in any form |
| Technic support | We supply chip encoding service for both magnetic stripe and rfid chip hotel key cards |
| Crafts | Glossy, matt, glitter, metallic, laser, or with overlay for thermal printer or with special lacquer for Epson inkjet printer |
| Production time | normally 7-10 days for quantity 1-50,000pcs for both encoding or no-encoding cards |
| Packing Details | 200pcs shrink wrap pack or 200pcs individual pp bag pack, then put in one white box |
| Delivery time | 3-5 working days by express(DHL,TNT,Fedex,UPS, .etc.) |
| Sample Charge | We can offer free sample that is in stock,but the freight need to be paid by you. |
| Payment | We accept T/T,Paypal,Escrow,Western Union,trade assurance etc. |
